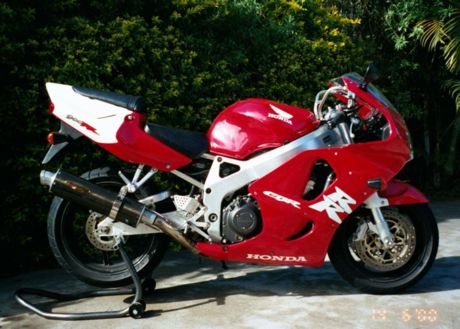

The 1998 Fireblade CBR 900rr

These are the Aussie Stock Specifications

DIMENSIONS
Overall Length 2040mm (80.3in)
Overall Width 685mm (27.0in)
Overall Height 1135mm (44.7in)
Seat Height 817mm (32.2in)
Wheelbase 1405mm (55.3in)

WEIGHT
Dry Weight 180 kg (397lbs)

CAPACITITES
Engine Oil After Draining 3.5l
Fuel Tank 18.00 (4.76gal)
Fuel Reserve 3.5 (0.92gal)
Cooling System capacity 2.64 l (0.697gal)
Maximum Weight capacity 189kg (417lb)

ENGINE
Engine Type 919cc liquid-cooled inline four-cylinder
Bore and Stroke 71mm x 58mm
Compression Ratio 11.1:1
Valve Train DOHC: four valves per cylinder
Carburetion Four 38mm flat-slide CV
Final Drive O-ring sealed #525 chain
Ignition Solid-state digital with 3D mapping
Transmission Close Ratio Six-speed

CHASSIS AND SUSPENSION
FRONT: 45mm HMAS cartirdge fork with stepless preload, rebound and compression damping adjustability; 4.7 inches travel
REAR: Pro-Link HMAS single shock with seven-way spring preload, and stepless rebound and compression damping adjustability; 4.9 inches of travel

BRAKES
FRONT: Dual full-floating disc with four-piston calipers
REAR: Single disc

TIRES & THINGS
FRONT: 130/70ZR16 Radial
REAR: 180/55ZR17 Radial
Wheelbase 55.1 inches
Rake (Caster Angle) 24
Trail 95mm (3.7 inches)
